High Temperature Resistance Magnesium Alloy Billet For Extrusion with Customizable Size
Datos del producto:
| Lugar de origen: | Hunan, China |
| Nombre de la marca: | high broad |
| Número de modelo: | ZK60 WE43 MNE21 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 100 |
|---|
|
Información detallada |
|||
| Composición química: | Mg Al Zn Mn | Material: | Metal del magnesio |
|---|---|---|---|
| Forma: | Las barras | Tamaño: | 60-150 mm |
| Rango de diámetro: | 800 mm máximo | Rango de longitud: | 8500 mm máximo |
| Tratamiento termal: | T5 | Resistencia a la tracción: | 306 MPa (WE43) |
| Estrés de prueba: | 234 MPa (WE43) | Alargamiento: | 8% (WE43) |
| Contenido de itrio: | 3,7-5,5% | Contenido de gadolinio: | 0-9,5% |
| contenido del circonio: | 0,4-1,0% | Contenido de zinc: | 1-1,5% (WE94) |
| Contenido de neodimio: | 1,5-2,5% | ||
| Resaltar: | High Temperature Resistance Magnesium Alloy Billet,For Extrusion Magnesium Billet,Customizable Size Magnesium Alloy Bar |
||
Descripción de producto
Magnesium alloy billets designed for extrusion applications, ideal for use in vibration, dust, corrosive, high temperature and other demanding environments.
- WE43
- WE54
- WE94
- AZ80A
- AZ91
- AZ31B
- ZM2
- ZM3
- ZM6
- ZK60
- MnE21
- Cast magnesium billets/bars
- Extruded magnesium billet/bars
- Rolling plate
- High strength magnesium alloys
Designed for use in vibration, dust, corrosive, high temperature and other demanding environments.
WE series magnesium alloys are magnesium based with Gadolinium, Yttrium, Zinc and Zirconium. These high strength casting alloys can be used in temperatures up to 300°C (572°F) and feature excellent mechanical properties and corrosion resistance.
Common applications include:
- Helicopter transmissions
- Power systems
- Aero-engines
- Sports cars
- Missiles
| Specification | Y | Gd | Nd | Zn | Zr |
|---|---|---|---|---|---|
| WE54 | 4.71-5.5 | 1.0-2.0 | 1.5-2.0 | - | 0.4-1.0 |
| WE43 | 3.7-4.3 | 0-1.9 | 2.0-2.5 | - | 0.4-1.0 |
| WE94 | 3.5-4.5 | 8.5-9.5 | - | 1-1.5 | 0.4-0.7 |
| Specification | Thermal Treatment Status | 0.25% Proof Stress (MPa) | Tensile Strength (MPa) | Elongation % |
|---|---|---|---|---|
| WE43 | T5 | 234 | 306 | 8 |
| WE54 | T5 | 205 | 280 | 4 |
| WE94 | T5 | 370 | 450 | 6 |
Suitable for extruding, rolling, and forging processes.
- Complies with GB/T19078-2003 and ASTM standards
- Available shapes: round, D shaped ingots, round bars and plate
- Dimensions: Diameter up to 800mm, Length up to 8500mm

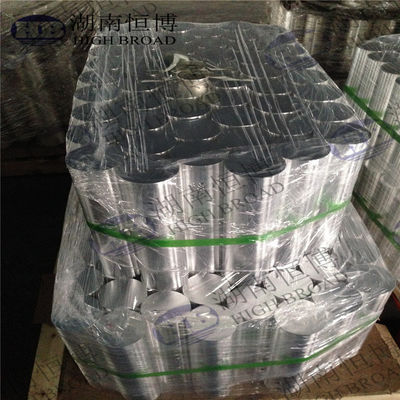

Pallets
3-20 days after confirming order. Exact delivery date depends on production season and order quantity.
We have been producing various master alloys in China for over 10 years. Our product range includes:
Magnesium Yttrium (MgY25/30), Magnesium Manganese (MgMn3/5/10), Magnesium Calcium (MgCa15/20), Magnesium Cerium (MgCe20/25/30), Magnesium Neodymium (MgNd20/25/30), Magnesium Scandium (MgSc2/5/10/30), Magnesium Gadolinium (MgGd20/25/30), Magnesium Strontium (MgSr10/20), Magnesium Lanthanum (MgLa20/25/30), Magnesium Zirconium (MgZr25/30), Magnesium Erbium (MgEr20), Magnesium Aluminum (MgAl50/68), Magnesium Copper (MgCu15), Magnesium Lithium (MgLi10), Magnesium Silicon (MgSi3), Magnesium Barium (MgBa20), Nickel Magnesium (NiMg), and more.
ZK60, ZM2, ZM3, ZM6, ZM21, ZM31, WE43, WE57, WE94, MnE21, and others.
Aluminum Zirconium (AlZr), Aluminum Vanadium (AlV), Aluminum Ytterium (AlY), Aluminum Zinc (AlZn), Aluminum Titanium (AlTi), Aluminum Boron (AlB), Aluminum Manganese (AlMn), Aluminum Erbium (AlEr), Aluminum Lanthanium (AlLa), Aluminum Cerium (AlCe), Aluminum Iron (AlFe), Aluminum Scandium (AlSc), Aluminum Strontium (AlSr), Aluminum Cobalt (AlCo), Aluminum Chromium (AlCr), Aluminum Monium (AlMo), Aluminum Nickel (AlNi), and others.
Y ingot/granules, DyFe ingot, and more.
Our strong technical team can supply customized alloys according to customer requirements. Contact us for ICP machine test results and additional information.
