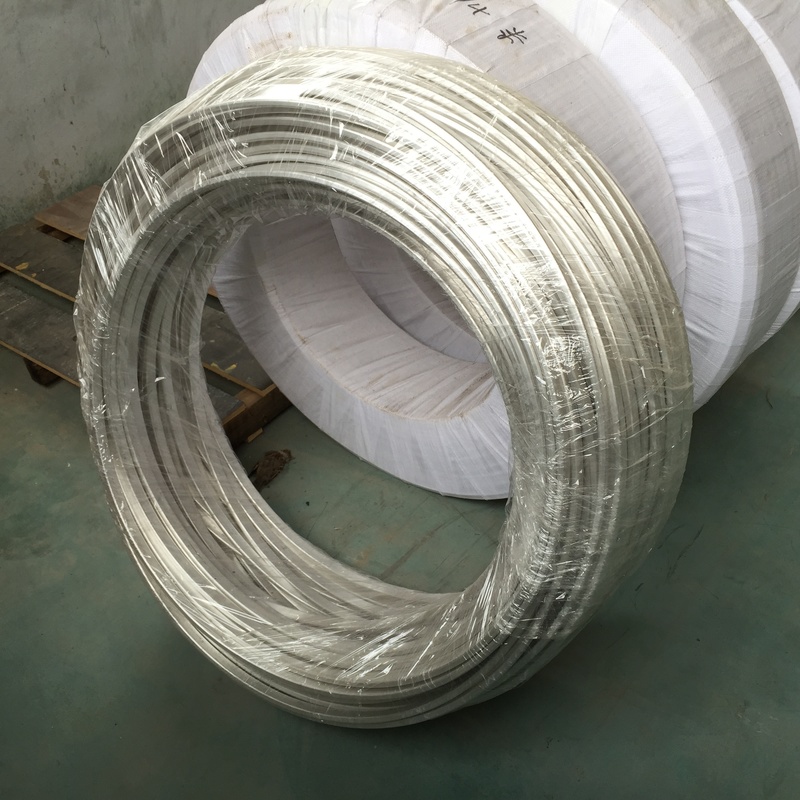

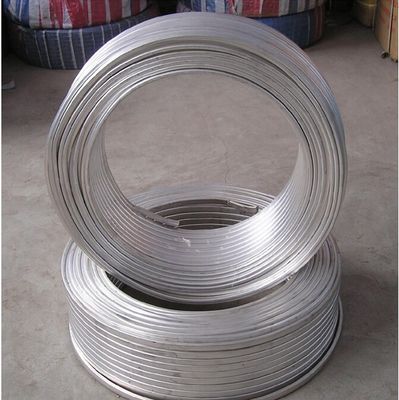

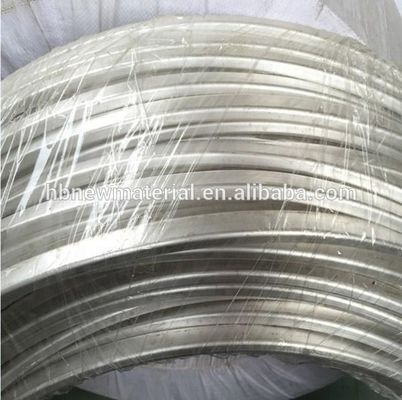

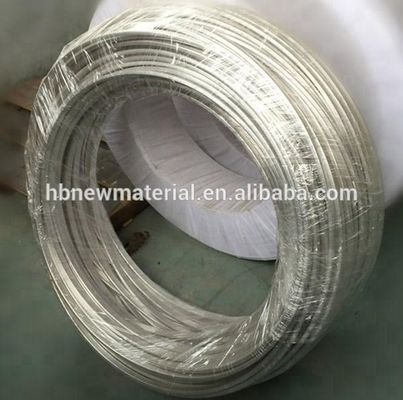

Extruded Magnesium Anode Ribbon M1C High Potential for Cathodic Protection with Customized Shape and Superior Electrochemical Properties
Datos del producto:
| Lugar de origen: | Hunan, China |
| Nombre de la marca: | HIGH BROAD Magnesium anode manufacture |
| Número de modelo: | HP AZ |
Pago y Envío Términos:
| Cantidad de orden mínima: | 100 |
|---|
|
Información detallada |
|||
| Composición química: | Magnesio Aluminio Zinc | Material: | Aleación de magnesio AZ63 |
|---|---|---|---|
| Forma: | Cinta personalizada | Voltaje de circuito abierto: | 1,70-1,75 V (alto potencial) |
| Voltaje de circuito cerrado: | 1,57-1,62 V (alto potencial) | Capacitancia real: | ≥1.100 Ah/g (Alto Potencial) |
| Eficiencia actual: | ≥50% (alto potencial) | Contenido de aluminio: | 5,30-6,70 % (AZ63B) |
| Contenido de zinc: | 2,50-3,50% (AZ63B) | Contenido del manganeso: | 0,15-0,70% (AZ63B) |
| Máximo de silicio: | 0,10% (AZ63B) | Cobre máximo: | 0,02% (AZ63B) |
| Níquel máximo: | 0,002% (AZ63B) | Hierro máximo: | 0,005% (AZ63B) |
| Otros elementos máx.: | 0,30% total | ||
| Resaltar: | Customized Shape Magnesium Anode Ribbon,Electrochemical Properties Extruded Magnesium Anode,M1C Sacrificial Magnesium Anode |
||
Descripción de producto
Magnesium Anode Ribbons High Potential M1C
Extruded Magnesium Anode Ribbon for Cathodic Protection | ASTM standard produced and tested
The corrosion of metal material in seawater, lakes, or soil can be prevented using electrochemical cathodic protection with magnesium anodes. This method works by connecting the negative current of a metal material or alloy to the protected metal body. As the sacrificial metal dissolves, protective current is transferred to the protected metal body, preventing corrosion. Widely used in shipbuilding, port construction, marine engineering, underground pipelines, petrochemical, power generation, and municipal applications.
Chemical Compositions of Cast Magnesium Anodes (%)
| Element | High Potential | AZ63B | AZ63C | AZ63D |
|---|---|---|---|---|
| Al | <0.01 | 5.30-6.70 | 5.30-6.70 | 5.0-7.0 |
| Zn | --- | 2.50-3.50 | 2.50-3.50 | 2.0-4.0 |
| Mn | 0.5-1.30 | 0.15-0.70 | 0.15-0.07 | 0.15-0.70 |
| Si (max) | 0.05 | 0.10 | 0.30 | 0.30 |
| Cu (max) | 0.02 | 0.02 | 0.05 | 0.10 |
| Ni (max) | 0.001 | 0.002 | 0.003 | 0.003 |
| Fe (max) | 0.03 | 0.005 | 0.005 | 0.005 |
| Others each | 0.05 | --- | -- | --- |
| Others total | 0.30 | 0.30 | 0.30 | 0.30 |
Electrochemical Properties of Cast Magnesium Anodes
| Item | Open-circuit Voltage (-V) | Close-circuit Voltage (-V) | Actual Capacitance (A.h/g) | Current Efficiency (%) |
|---|---|---|---|---|
| High Potential | 1.70-1.75 | 1.57-1.62 | ≥ 1.100 | ≥ 50 |
| Low Potential (AZ63) | 1.50-1.55 | 1.45-1.50 | ≥ 1.105 | ≥ 50 |
Note: Open and Close-circuit voltage is relative to Saturated Calomel Electrode (SCE)
About Our Company
We represent a large anode plant in China, specializing in magnesium, aluminum, and zinc anodes. Our products are primarily exported to Canada and USA, with annual exports of approximately 3000 metric tons. Our products undergo regular testing by independent third-party labs in the USA to maintain high quality standards. With direct access to raw material resources, we offer competitive pricing while maintaining product excellence.
Packaging & Shipping
Package:
On pallet
Delivery Time:
3-20 days after confirming order. Exact delivery date depends on production season and order quantity.
