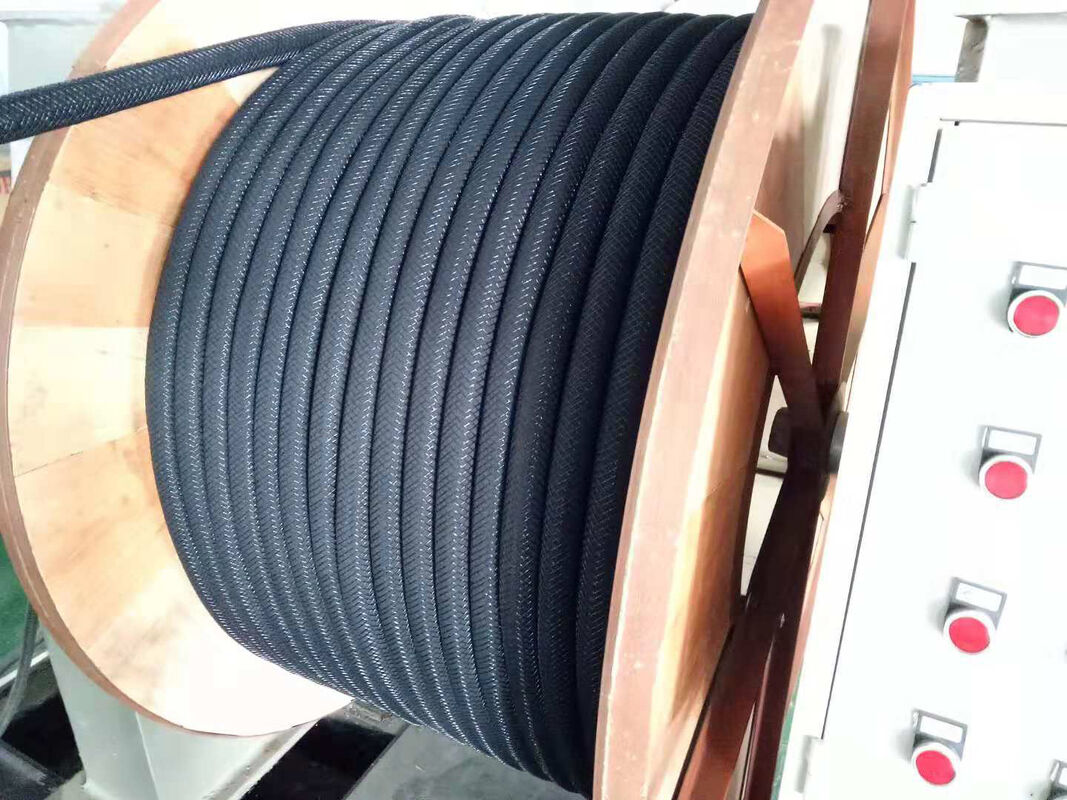

Multi Cable Option HMWPE XLPE Kynar MMO Linear Anode Selectable Insulation for Soil Chemistry Matching
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | High Broad or OEM |
| Certificación: | ISO 9001, ASTM B348 |
| Número de modelo: | MMO-CS-008 |
|
Información detallada |
|||
| Tipo de ánodo: | Ánodo lineal MMO seleccionable por cable | Opciones de cables: | HMWPE / XLPE-PVC / Kynar-HMWPE |
|---|---|---|---|
| Soporte de selección: | Revisión de análisis de suelo de cortesía | Clasificación de HMWPE: | pH 5-9, < 75°C |
| Clasificación XLPE/PVC: | pH 3-12, < 90°C | Clasificación Kynar/HMWPE: | pH 2-14, resistente a productos químicos |
| Resaltar: | Anodo lineal MMO de varios cables,HMWPE XLPE Kynar CP Cable,El anodo de aislamiento de suelo |
||
Descripción de producto
Cable-Selectable MMO Linear Anode System
One anode design does not fit all soil conditions. Our cable-selectable MMO linear anode system allows engineers to match cable insulation to site-specific soil chemistry, maximizing system life and reliability without over-specifying.
Cable Selection Guide
| Insulation | Best For | Limitations |
|---|---|---|
| HMWPE | Standard buried service, neutral to mildly acidic soils (pH 5-9), general moisture resistance | Not recommended for organic solvent exposure or temperatures above 75°C |
| XLPE/PVC | Higher temperature soils (up to 90°C), wet environments, good chemical resistance | PVC outer layer may degrade in highly alkaline soils (pH > 12) |
| Kynar/HMWPE | Aggressive chemical environments, acidic soils (pH 2-5), refinery and chemical plant sites | Higher cost; specify only when required by soil chemistry |
Selection Support
We provide complimentary soil analysis review — send your site soil resistivity and chemistry data, and our engineering team recommends the optimal cable configuration. No charge, no obligation.
The anode core (MMO/Ti wire, coke backfill, splice connections) remains identical across all cable options, ensuring consistent CP performance regardless of cable selection.
Applications
- Projects with variable soil conditions along route
- Sites requiring cost-optimized cable specification
- Retrofit projects with known soil chemistry history
