99.999% Purity Yttrium Oxide Powder (Y2O3) for Thermal Spray Grade Plasma Resistant Coating in Semiconductor Chambers
Datos del producto:
| Lugar de origen: | Jiangxi, China |
| Nombre de la marca: | High Broad |
| Certificación: | ISO 9001:2015, REACH |
| Número de modelo: | Y2O3-5N |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1000 kilogramo |
|---|---|
| Precio: | USD 5-100 / Kilogram |
| Detalles de empaquetado: | Bolsa interior sellada al vacío con bolsa exterior de papel de aluminio, embalada en bidones de fibr |
| Tiempo de entrega: | 5-15 días hábiles después de la confirmación del pedido |
| Condiciones de pago: | T/T, L/C, PayPal, Western Union |
| Capacidad de la fuente: | 500000 kilogramos por mes |
|
Información detallada |
|||
| Densidad: | 5,01 g/cm³ | superficie específica: | 8-15 m²/g |
|---|---|---|---|
| Tamaño de partícula: | 1 a 5 μm | Punto de fusión: | 2425 °C |
| Estructura cristalina: | Cúbico | Pureza: | 99.999% (5N) |
| Resaltar: | 5N Yttrium Oxide Powder,Thermal Spray Coating Grade,Semiconductor Chamber Protection |
||
Descripción de producto

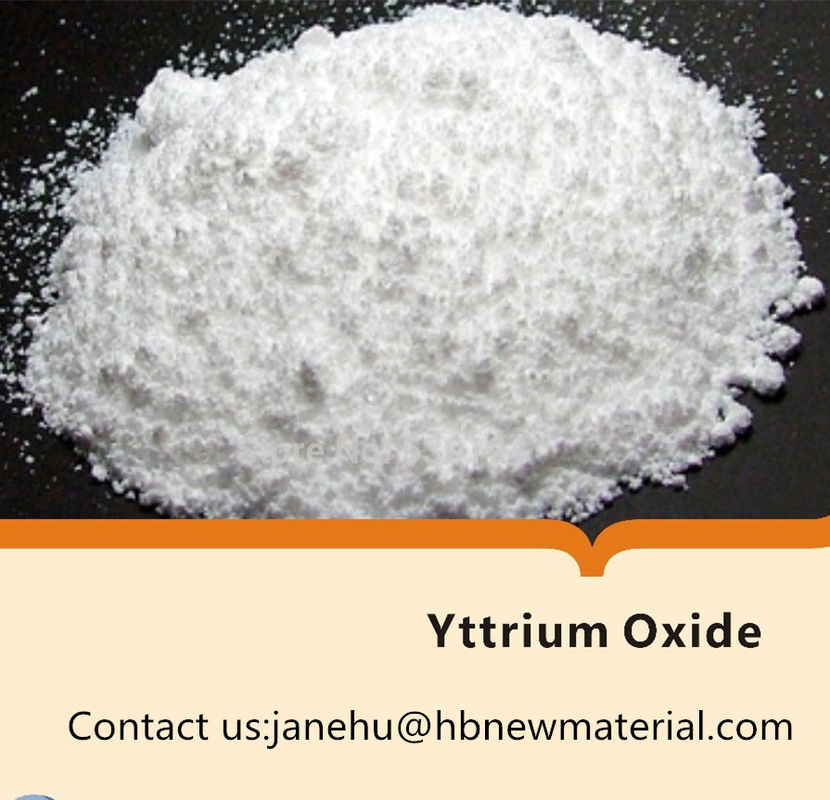

99.999% (5N) Yttrium Oxide (Y₂O₃) Thermal Spray Grade Powder
Our 99.999% (5N) yttrium oxide powder is manufactured in China using advanced rare earth extraction and purification technology. This thermal spray grade Y₂O₃ powder is specifically engineered for thermal spray coating of semiconductor chamber components, delivering exceptional consistency and performance in demanding industrial coating environments.
Key Features
- Ultra-high 99.999% (5N) purity for minimal contamination in sensitive semiconductor processes
- Optimized particle size distribution (1-5 μm D50) for consistent thermal spray deposition
- Excellent plasma etch resistance extends chamber component service life by 3-5x
- High melting point (2425°C) ensures coating stability under extreme thermal cycling
- Low impurity levels of Fe, Na, Ca, Si ensure coating purity and dielectric integrity
Technical Specifications
| Parameter | Specification |
|---|---|
| Purity | 99.999% (5N) |
| Particle Size D50 | 1-5 μm |
| Crystal Structure | Cubic |
| CAS Number | 1314-36-9 |
| Appearance | White Powder |
| Density | 5.01 g/cm³ |
| Melting Point | 2425 °C |
| Specific Surface Area | 8-15 m²/g |
Recommended Applications
This yttrium oxide powder is widely used in thermal spray coating, plasma spray deposition, ceramic surface treatment, and other industrial coating processes requiring high purity rare earth materials. Its excellent thermal stability, chemical resistance, and plasma etch resistance make it ideal for protective coatings in harsh operating environments.
Packaging & Storage

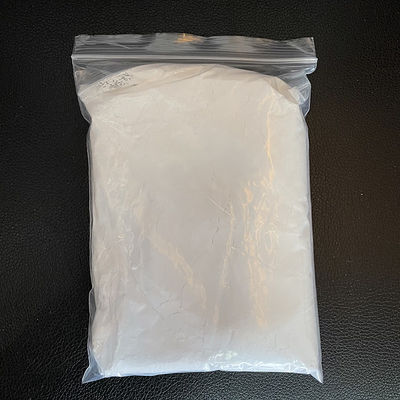

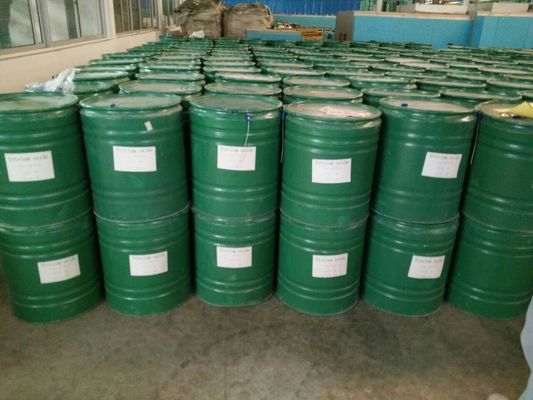

Vacuum sealed inner bag with aluminum foil outer layer to prevent moisture absorption. Packed in 25kg fiber drums with desiccant. Store in a cool, dry place away from acids and moisture.
