99.999% Purity Yttrium Oxide Powder (Y2O3) Optical Coating Grade 0.5-3 mm Granules for Thin Film Deposition
Datos del producto:
| Lugar de origen: | Jiangxi, China |
| Nombre de la marca: | High Broad |
| Certificación: | ISO 9001:2015, REACH, RoHS |
| Número de modelo: | Y2O3-5N |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 kilogramo |
|---|---|
| Precio: | USD 120-280 / Kilogram |
| Detalles de empaquetado: | Bolsa interior de alta pureza sellada al vacío con barrera contra la humedad de papel de aluminio, e |
| Tiempo de entrega: | 5-15 días hábiles después de la confirmación del pedido |
| Condiciones de pago: | T/T, L/C, PayPal, Western Union |
| Capacidad de la fuente: | 2000 kilos por mes |
|
Información detallada |
|||
| Tamaño de partícula: | 0,5-3 mm (forma de tableta/gránulo) | Rango de transmisión: | 0,25-8 µm |
|---|---|---|---|
| Estructura cristalina: | Cúbico | Pureza: | 99.999% (5N) |
| Índice de refracción: | 1,93 a 500 nm | Punto de fusión: | 2425 °C |
| Resaltar: | 5N Optical Grade Y2O3,Thin Film Coating Material,Lens Anti-Reflection Powder |
||
Descripción de producto
99.999% (5N) Yttrium Oxide (Y₂O₃) Optical Coating Grade Powder
Our 99.999% (5N) yttrium oxide powder is manufactured in China using advanced rare earth extraction and purification technology. This optical coating grade Y₂O₃ powder is specifically engineered for electron beam and ion-assisted deposition of anti-reflection and high-reflection optical thin films, delivering exceptional consistency and performance in demanding industrial coating environments.
Key Features
- 99.999% ultra-high purity eliminates absorption losses in visible and IR wavelength ranges
- Available in tablet and granule form (0.5-3 mm) optimized for consistent e-beam evaporation rates
- High refractive index (1.93 at 500nm) provides excellent optical performance in multilayer coatings
- Wide transmission range from 0.25 μm to 8 μm covering UV, visible, and mid-IR applications
- RoHS compliant with traceable Certificate of Analysis for every production batch
Technical Specifications
| Parameter | Specification |
|---|---|
| Purity | 99.999% (5N) |
| Particle Size | 0.5-3 mm (tablet/granule) |
| Crystal Structure | Cubic |
| CAS Number | 1314-36-9 |
| Refractive Index | 1.93 at 500nm |
| Transmission Range | 0.25-8 μm |
| Appearance | White to Off-White Granules |
| Melting Point | 2425 °C |
Recommended Applications
This yttrium oxide powder is widely used in thermal spray coating, plasma spray deposition, ceramic surface treatment, and other industrial coating processes requiring high purity rare earth materials. Its excellent thermal stability, chemical resistance, and plasma etch resistance make it ideal for protective coatings in harsh operating environments.
Packaging & Storage

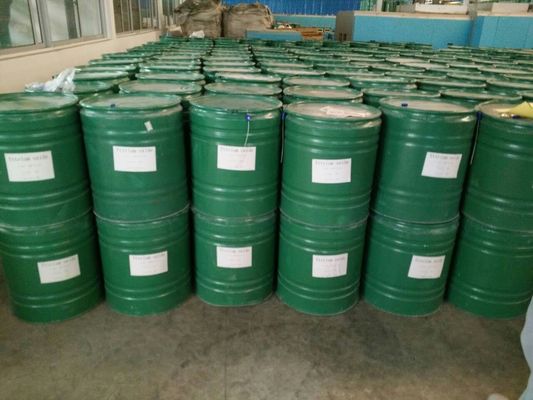

Vacuum sealed high-purity inner bag inside aluminum foil moisture barrier bag. Packed in 5kg or 25kg fiber drums. Store in clean, dry environment at 15-25°C. Keep away from organic solvents and strong acids.
